| TYPE |
Drying, firing, assembly line series |
DATE |
2009-11-20 |
| NAME |
Fettling Machinery |
PRICES |
0 |
| SIZE |
|
HITS |
6509 |
Description |

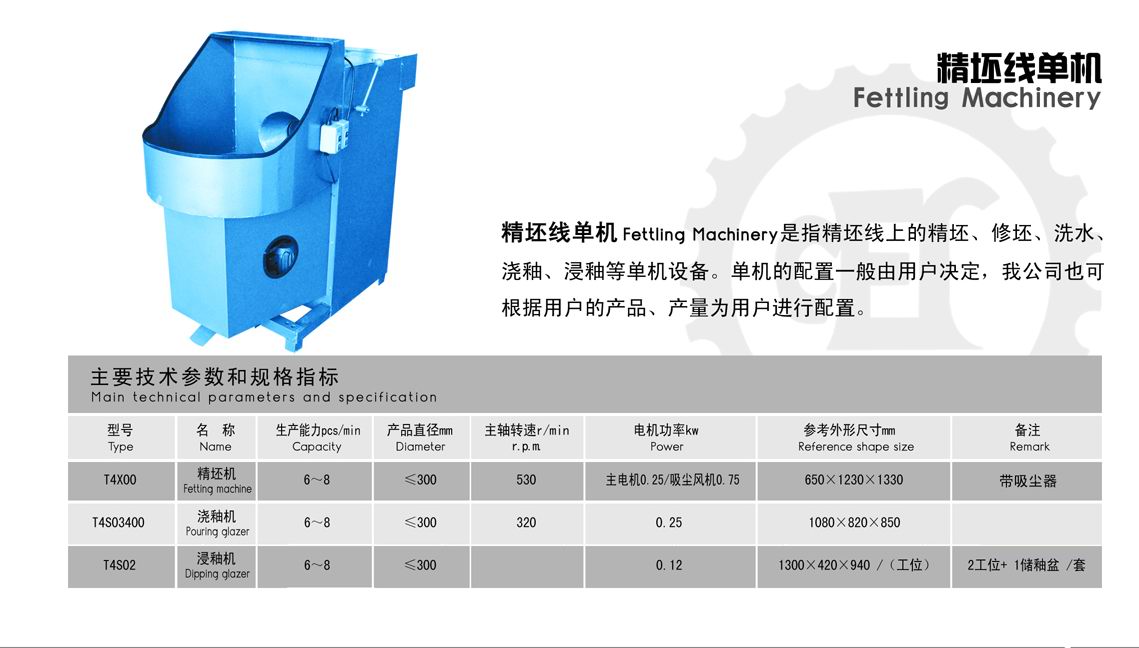

Fine Billet Line Single Mahcine machines on fettling line for fettling, trimming, washing, glazing, and leaching. The configuration of single machine is generally determined by customers, also can be processed according to the products and output of customers.
Main technical parameters and specification
| Type |
Name |
Capacity pcs/min |
Diameter mm |
r.p.m r/min |
Power kw |
Reference shape size mm |
Remark |
| T4X00 |
Fetting machine |
6~8 |
≤300 |
530 |
main motor 0.25, Vacuum blower 0.75 |
650×1230×1330 |
with a vacuum cleaner |
| T4S03400 |
Pouring glazer |
6~8 |
≤300 |
320 |
0.25 |
1080×820×850 |
|
| T4S02 |
Dipping glazer |
6~8 |
≤300 |
|
0.12 |
1300×420×940/ |
| |
|
|
